Product Catalog
Engineered Fiber Connectivity Solutions
AI Factory

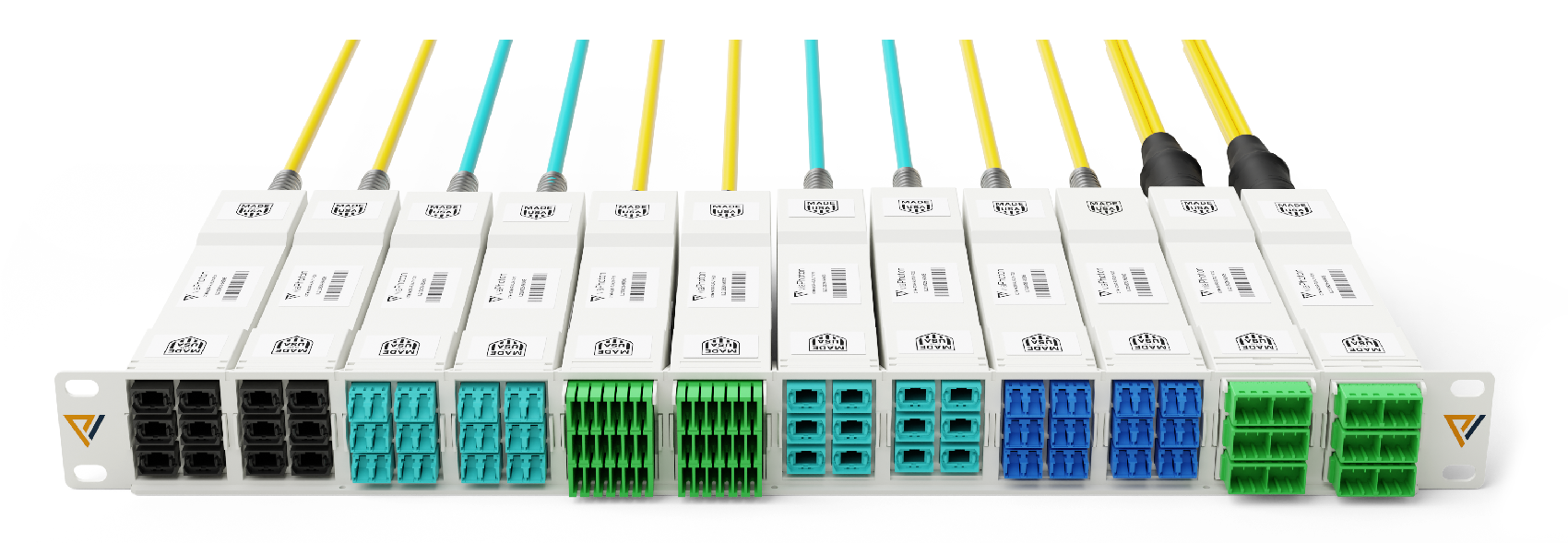

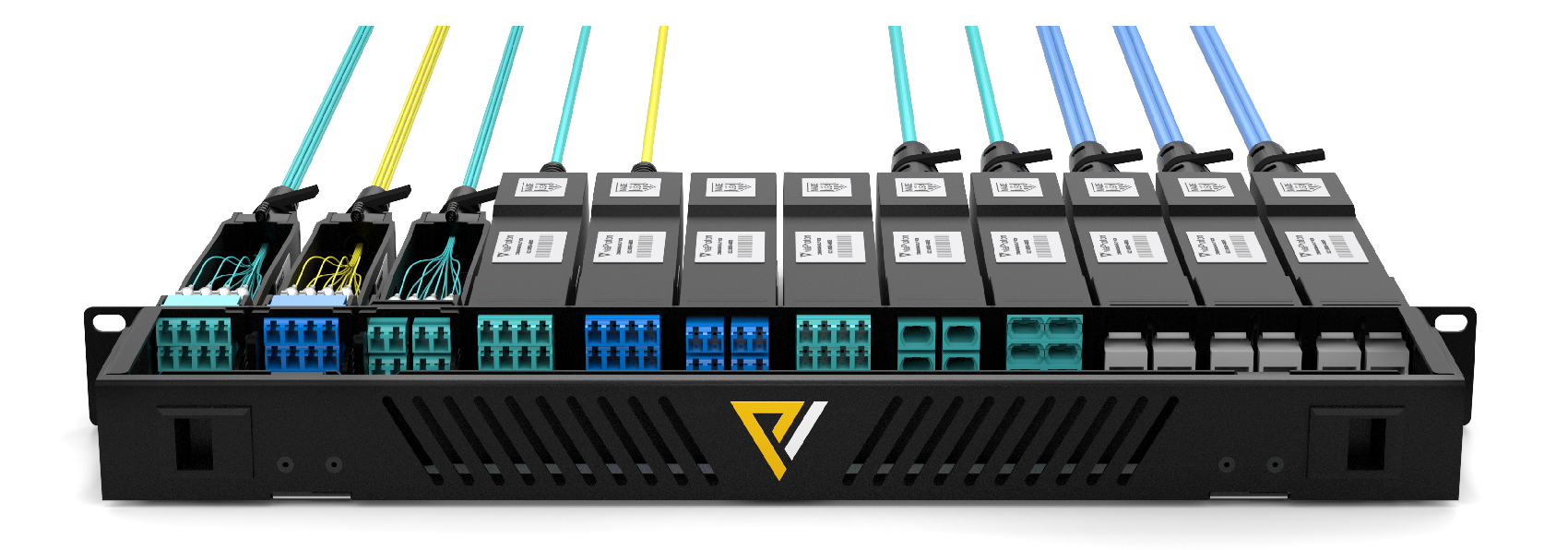

HyperReach™ Solution

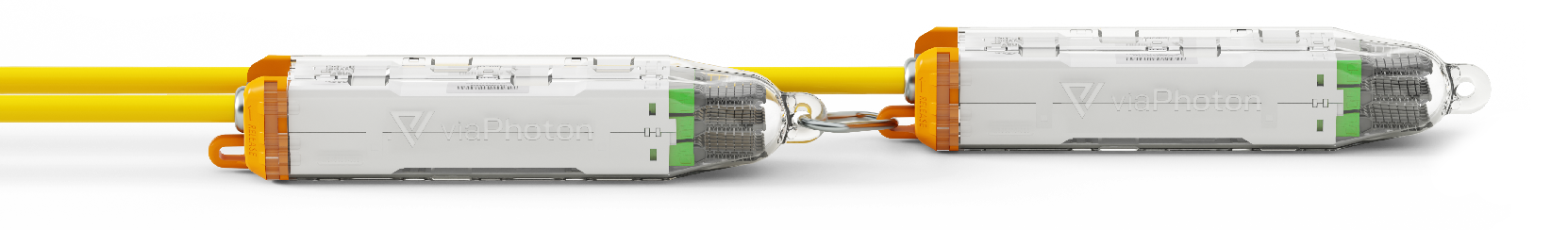

HyperReach™ Solution with Bullet Train Installation
- 83% faster installation velocity
- 3,456 fiber density per 1U rack space
- Post-installation testing is no longer required
- Bullet Train prevents damage and dust exposure
- 100% factory-tested pre-terminated fiber solution
- Flexibility to support all applications – MMC, SNMT, MPO, SN, LC, and Copper

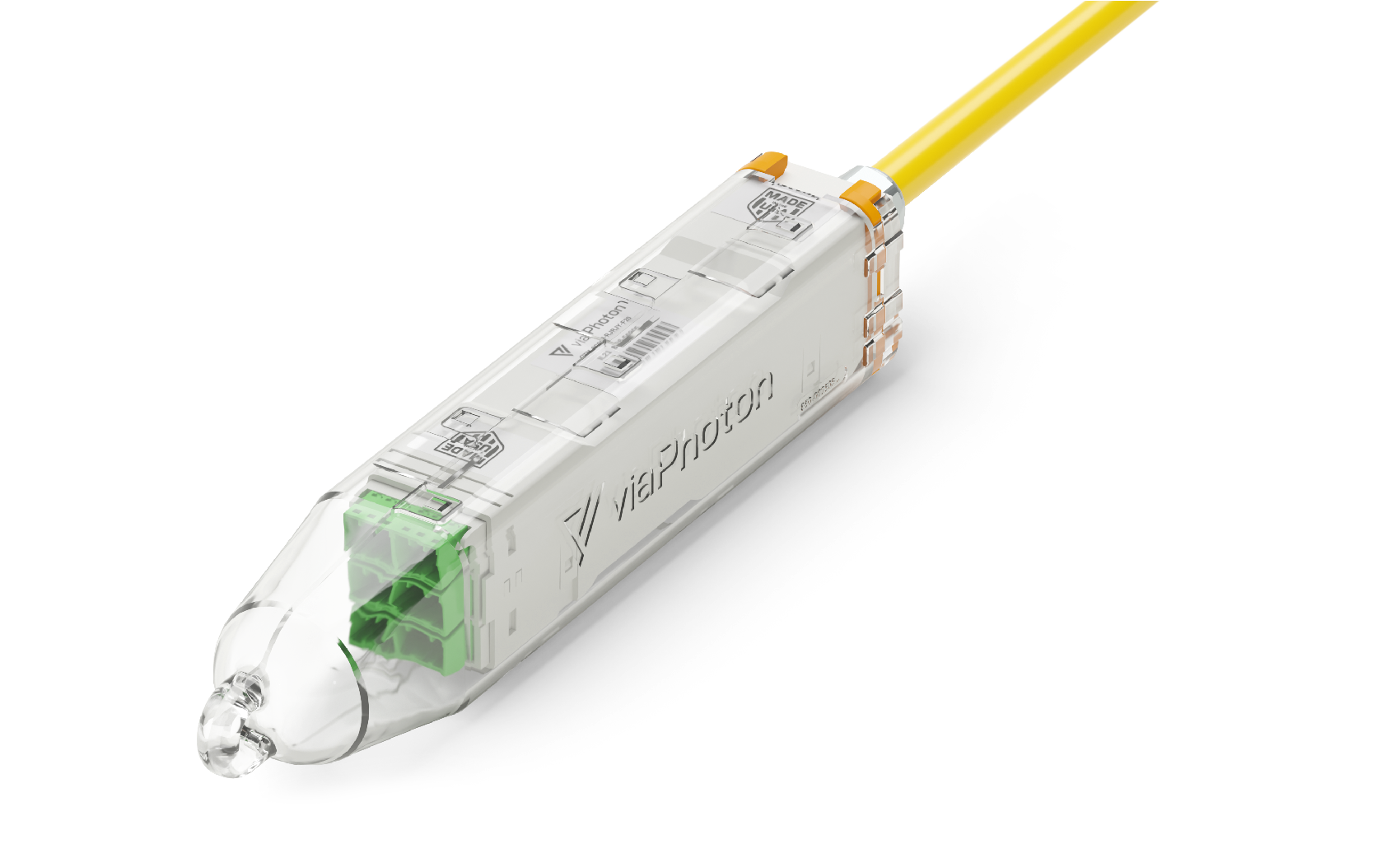

Fiber Trunk Module™
- Fully Protected Module: Reduces risk of damage during installation
- Multiple Modules in a Single Pull: Drastically reduces labor required for data hauls
- 100% factory testing with a lifetime warranty

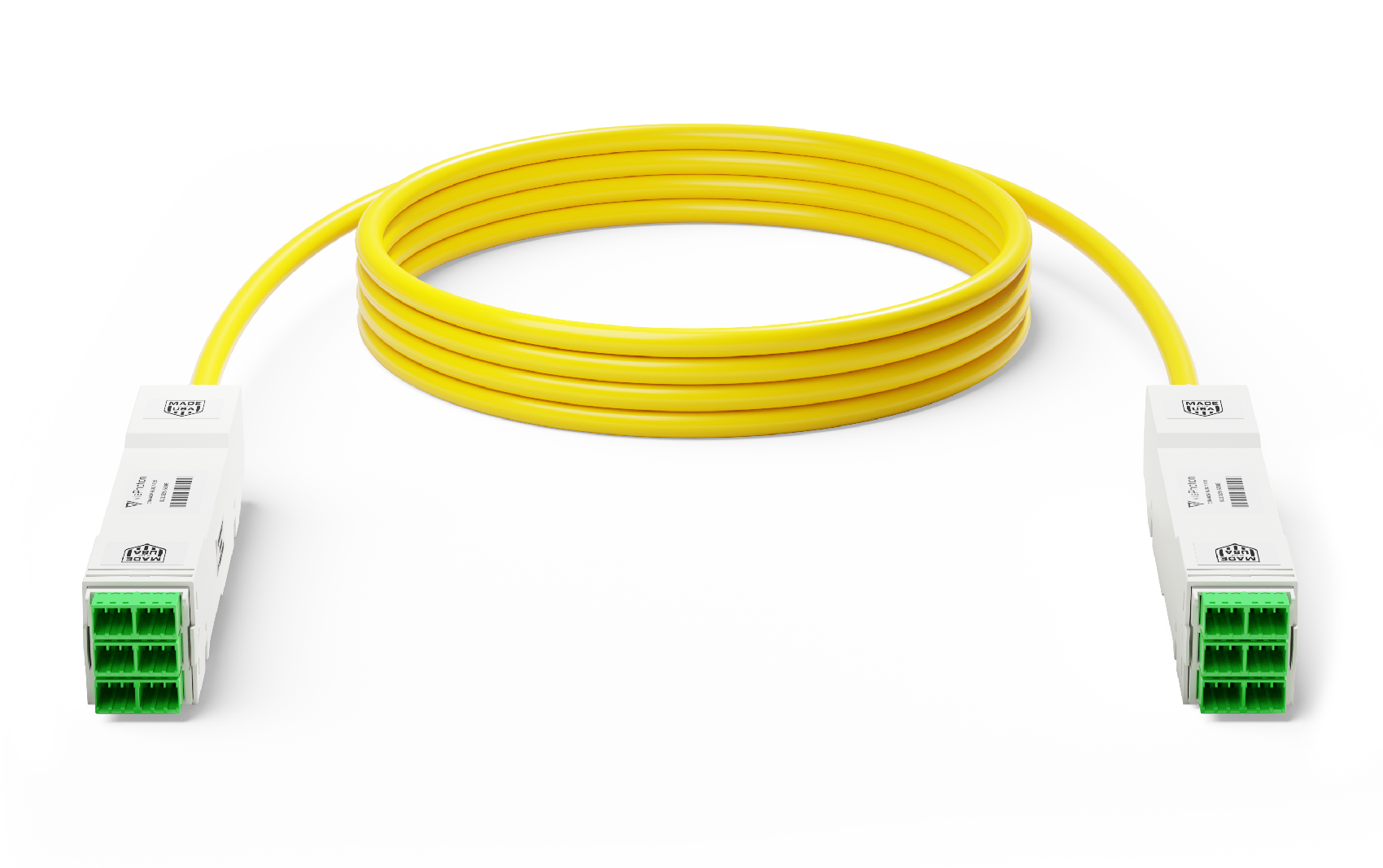

Fiber Trunk Module™ MMC
FTM-288SMPW-MCMMCMBY-XX
Indoor Fiber Trunk Module
288 fibers, singlemode, plenum, 18 port MMC-16 male, modules, white

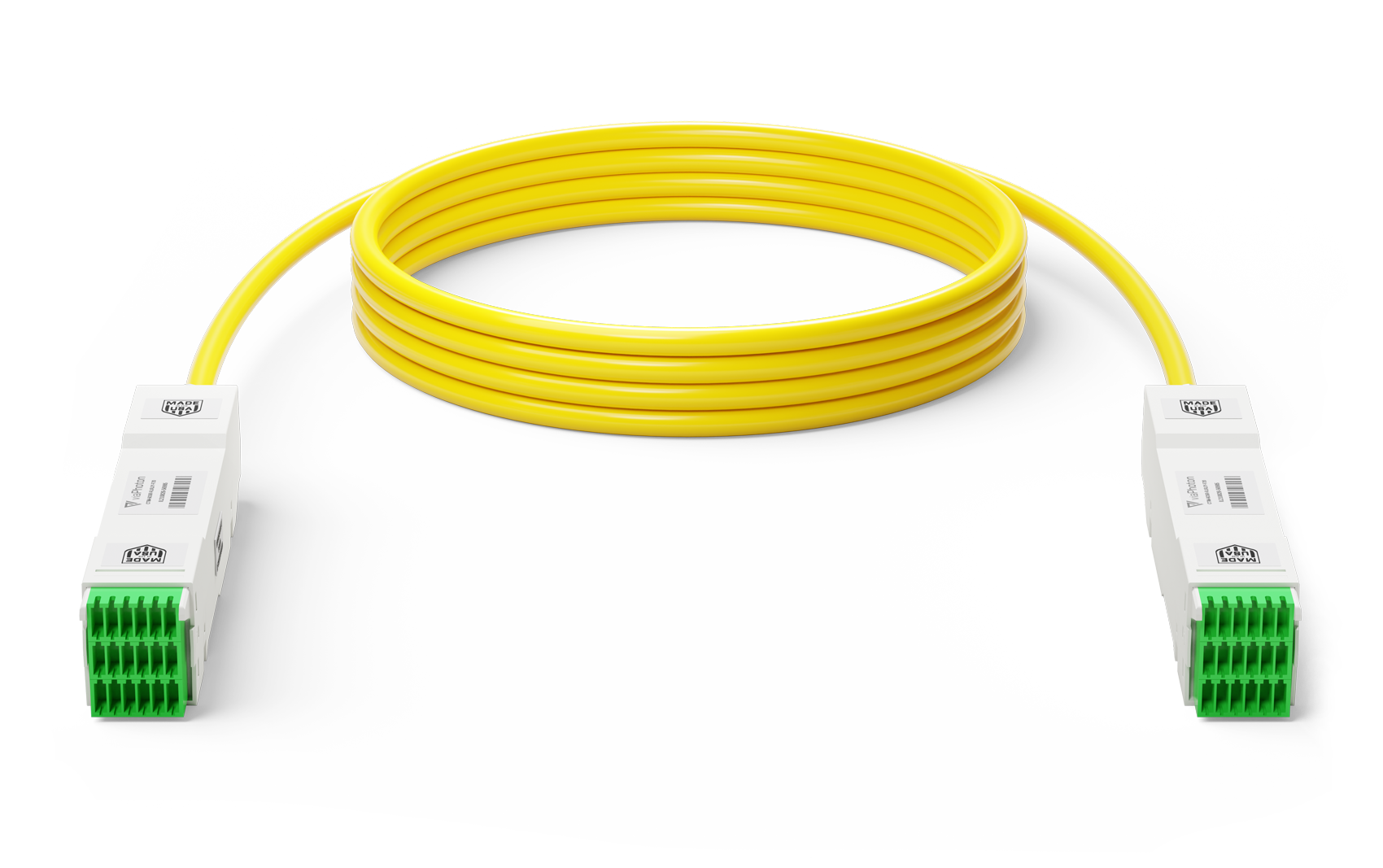

Fiber Trunk Module™ SNMT
FTM-288SMPW-SNMTV-xx
Indoor Fiber Trunk Module
288 fibers, single mode, plenum, 18-port SN-MT white modules

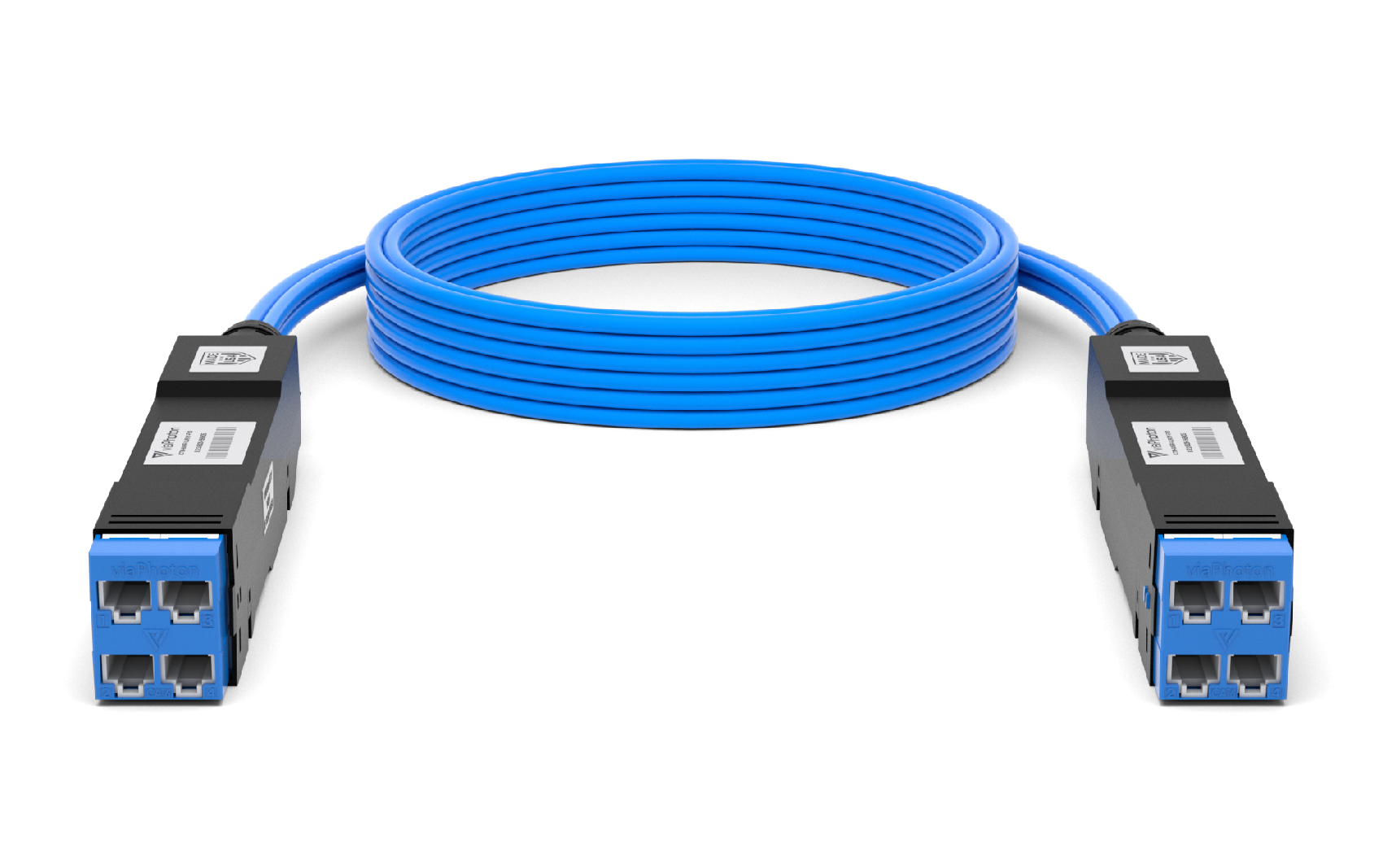

Copper Trunk Module
- Allows for Integrated Fiber & Copper in a Single Panel
- Designed to Support Category 6 Permanent Link
- Removable & Reusable Pulling Eye Cap
MPO and LC Fiber Trunk Modules
- Supports Single-mode or multi-mode
- Density up to 192 LCs in a 1U panel
- High density uses tabbed jumpers

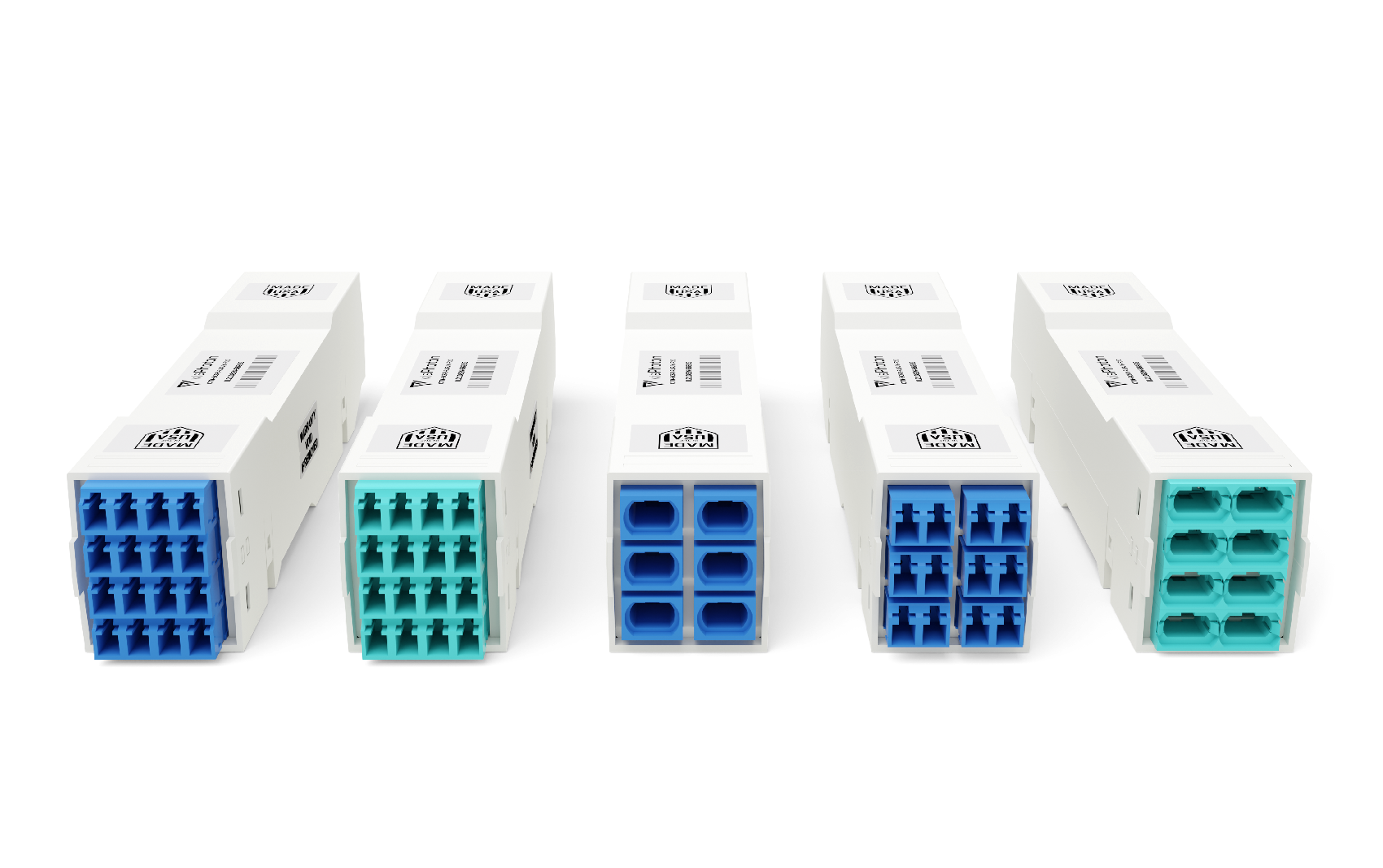

LC & MPO Adapter Modules
- Supports Base8, Base12, Base16 natively
- Up to 96 fibers using MPO adapters
- Front load and rear load modules

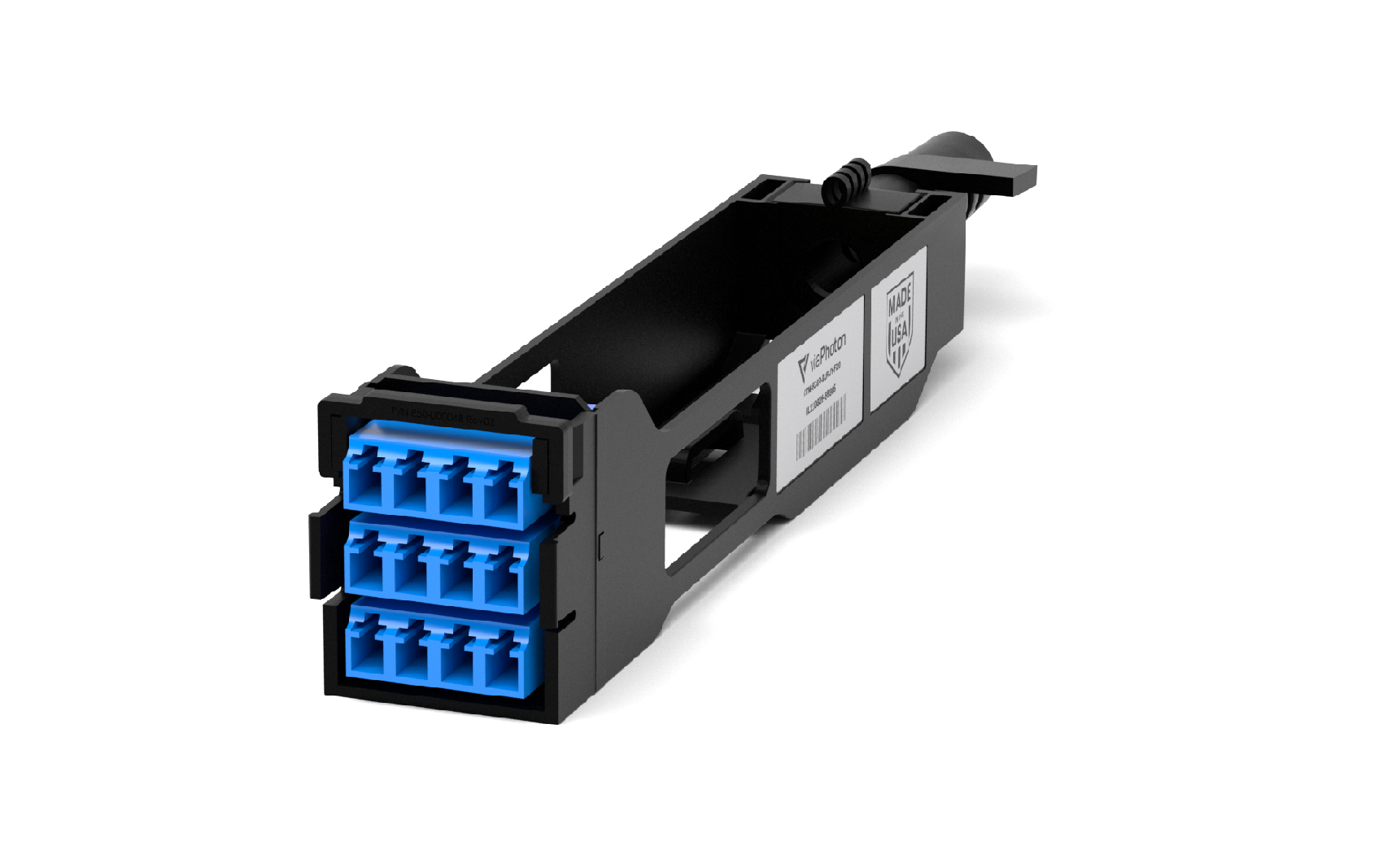

Rear Load LC

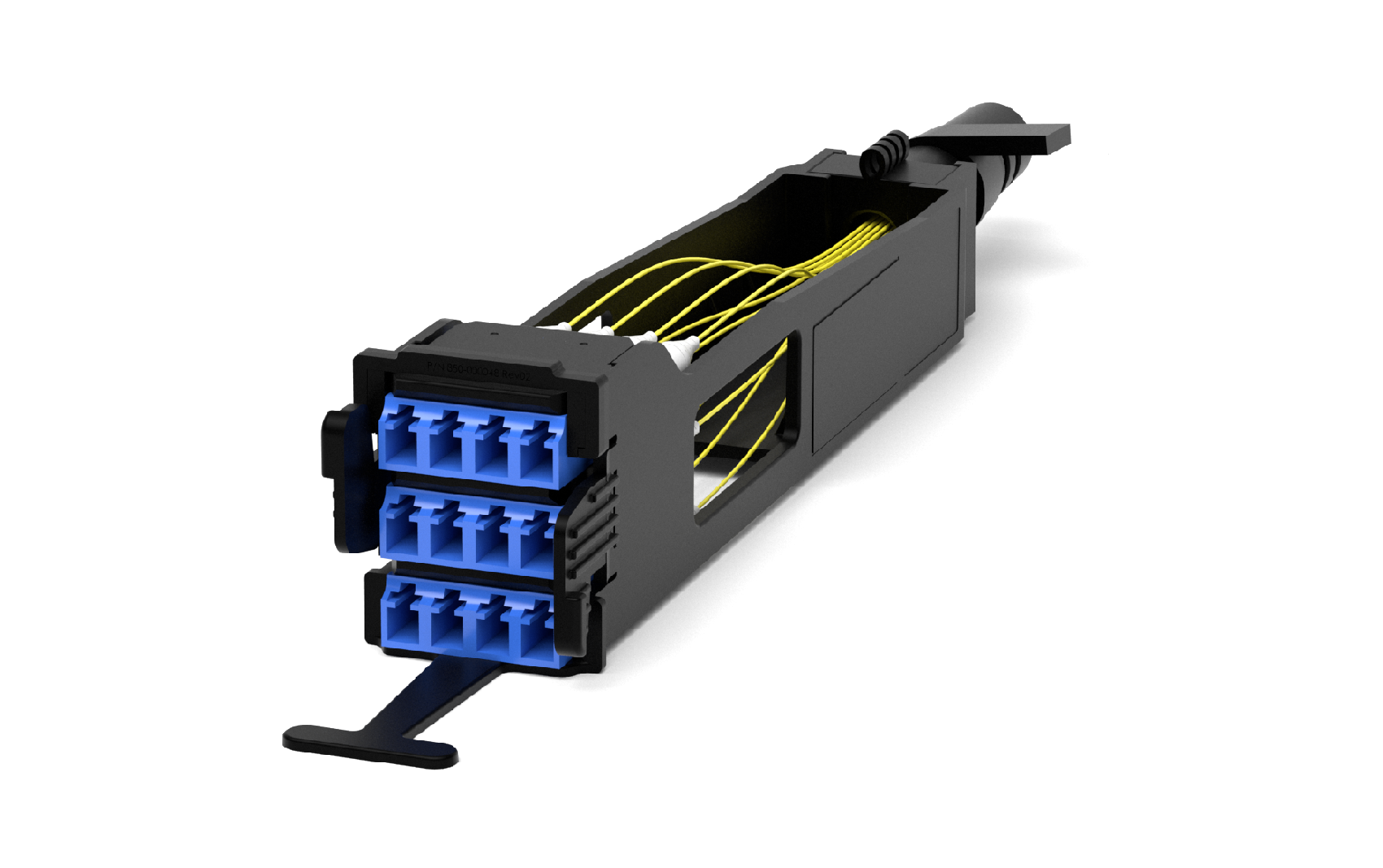

Front Load LC

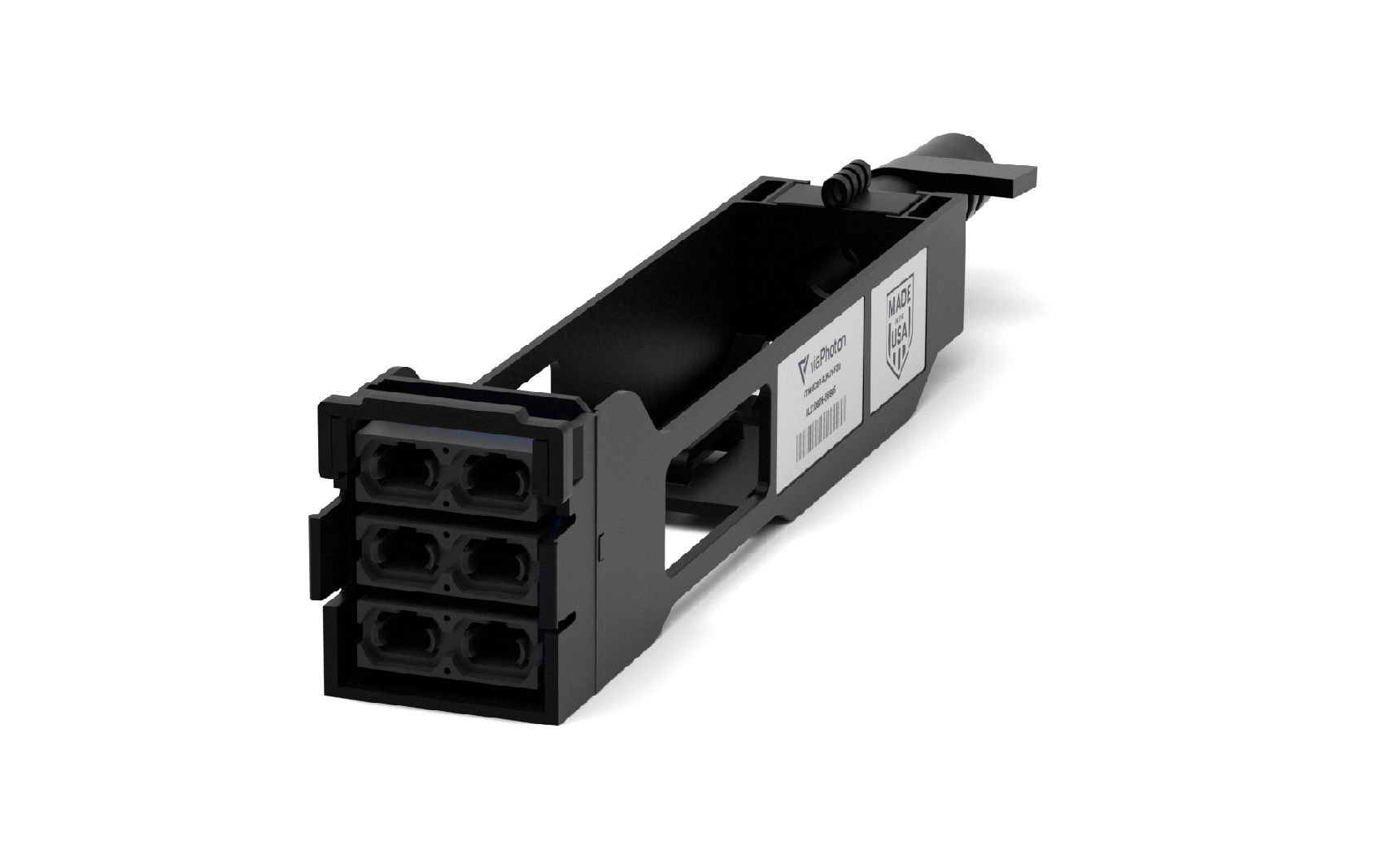

MPO

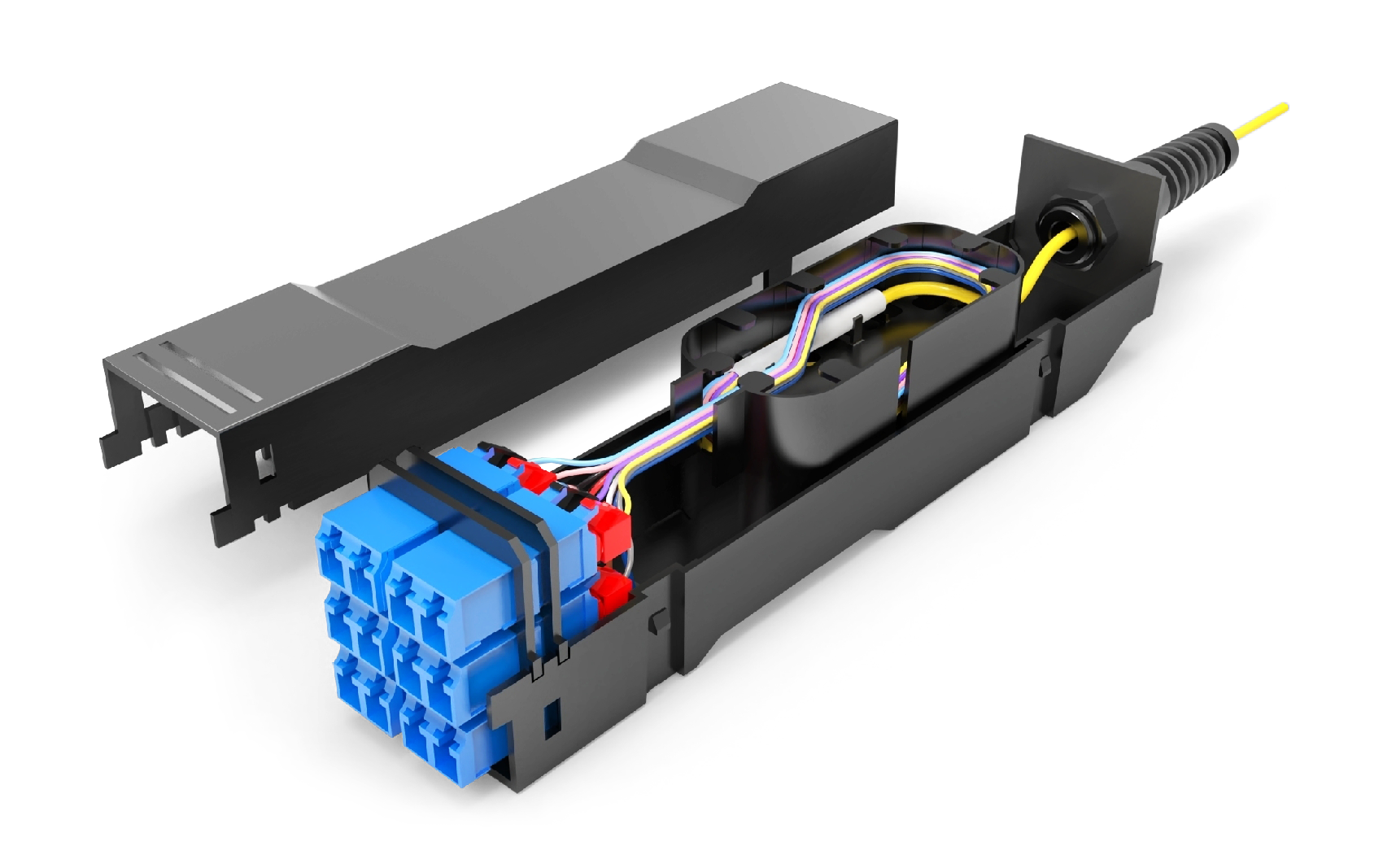

Fusion Splice Module LC
- 12 fibers mass fusion splice
- Supports Base8, Base12, Base16 natively
- Manage both incoming fibers and LC pigtail

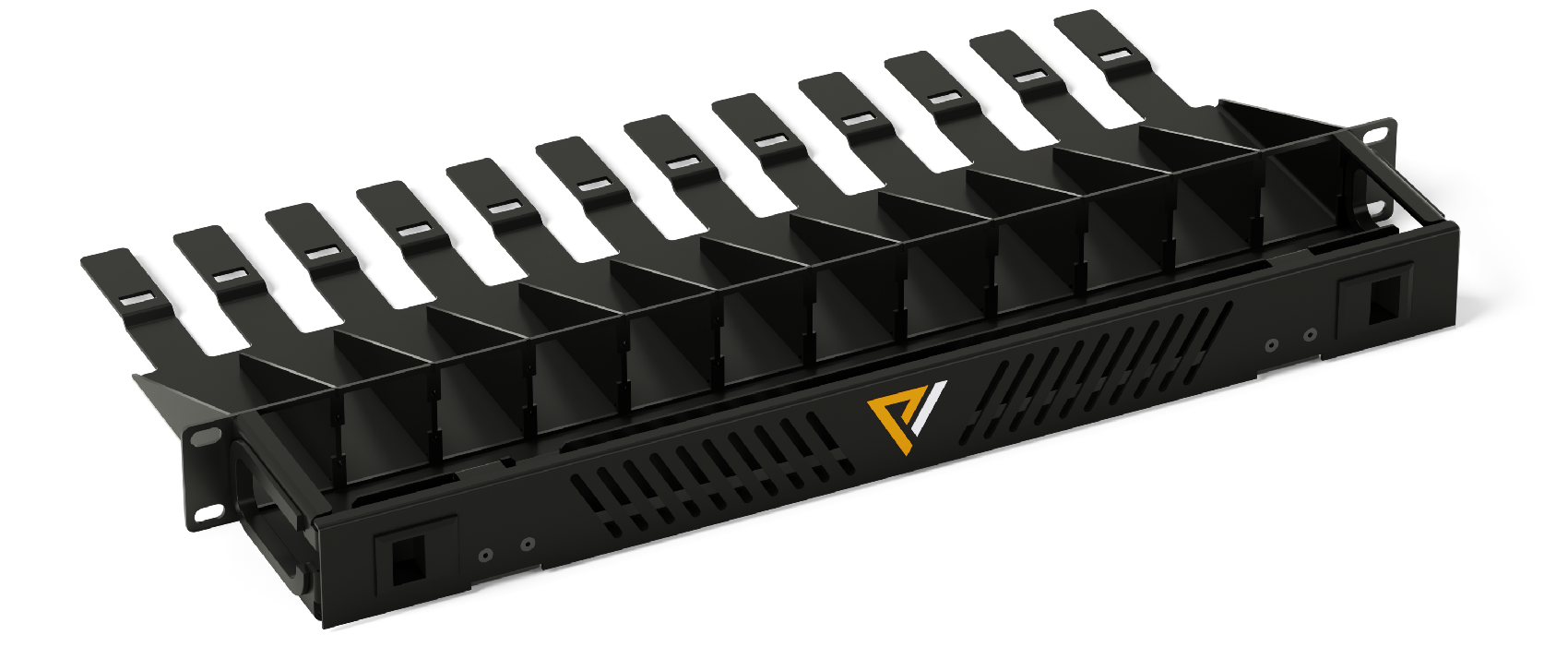

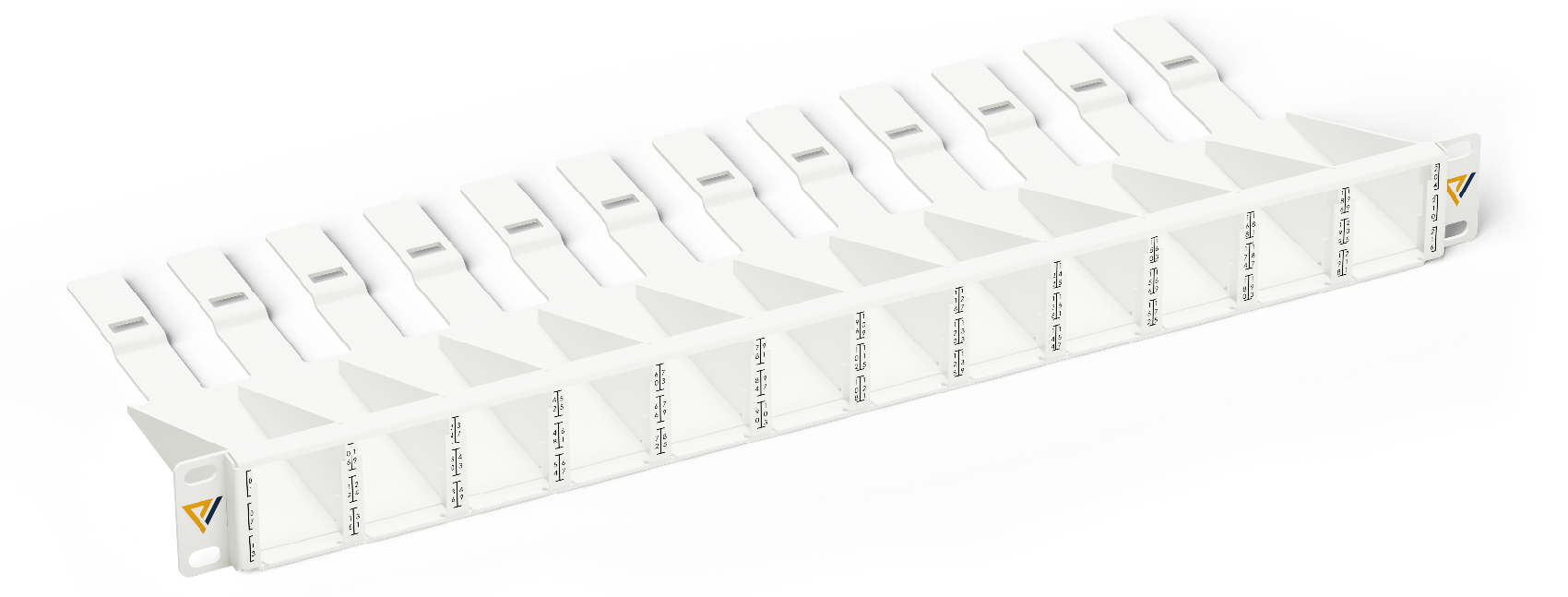

HyperReach™ Panel
- Extreme density – supports up to 192 LC in 1U (3456 SNMT, MMC)
- Highly flexible – one panel supports fiber, copper, base 2/8/12/16, and all common connector types (LC/SC/CS/SN/MPO/MTP/MDC/MMC)
- Lightweight and easy one-person install
- Integrated jumper management and support
- Flip down front panel with magnetic labeling strip in Black Panel

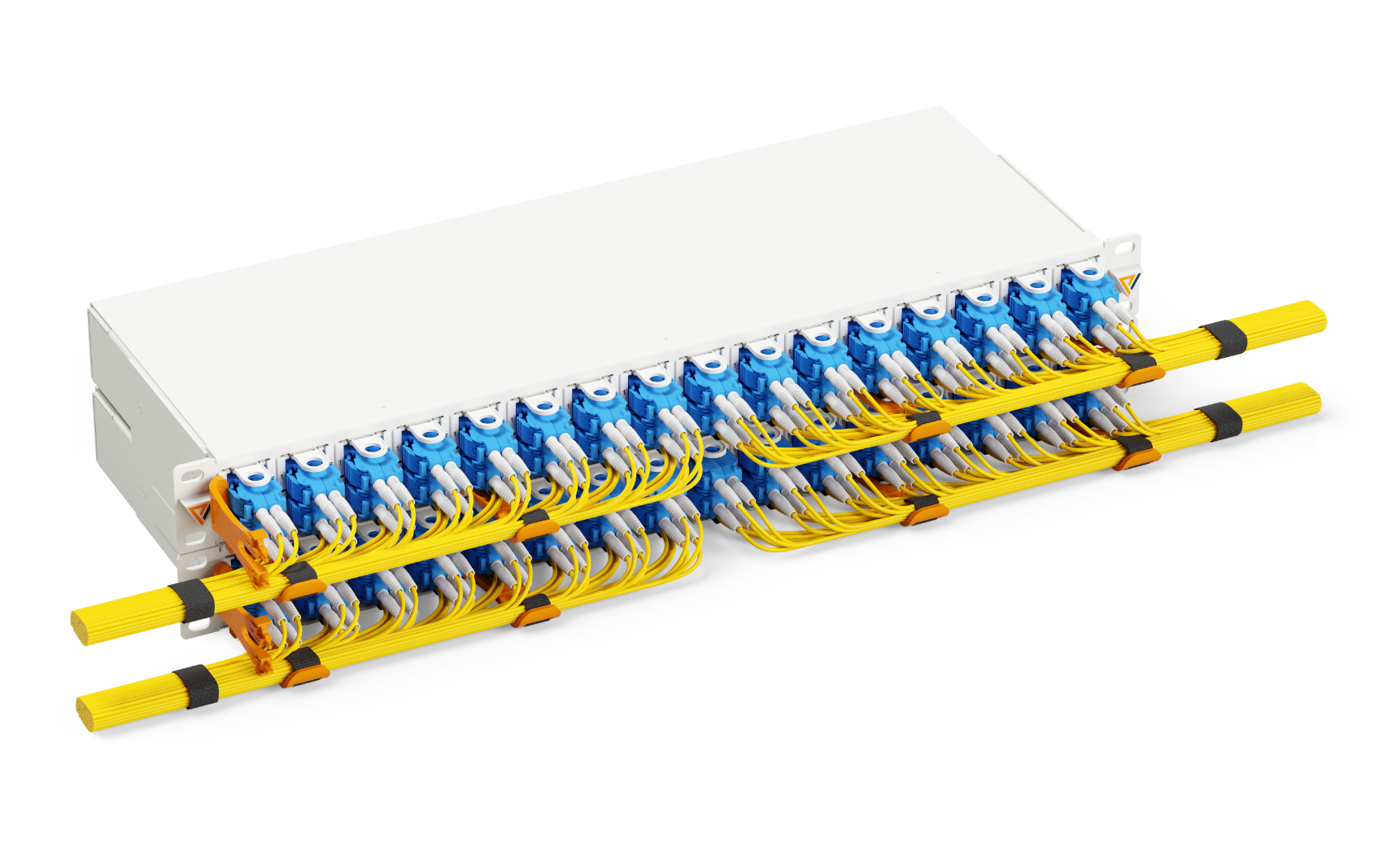

HyperClone™ Solution
QSFP Port Breakout Solution
HyperClone™ is a fully front-loaded QSFP breakout/port replication solution that supports 16 modules [128 Fibers] per 1U. It is tailored for high-density, rapid-deployment GenAI/ML applications.

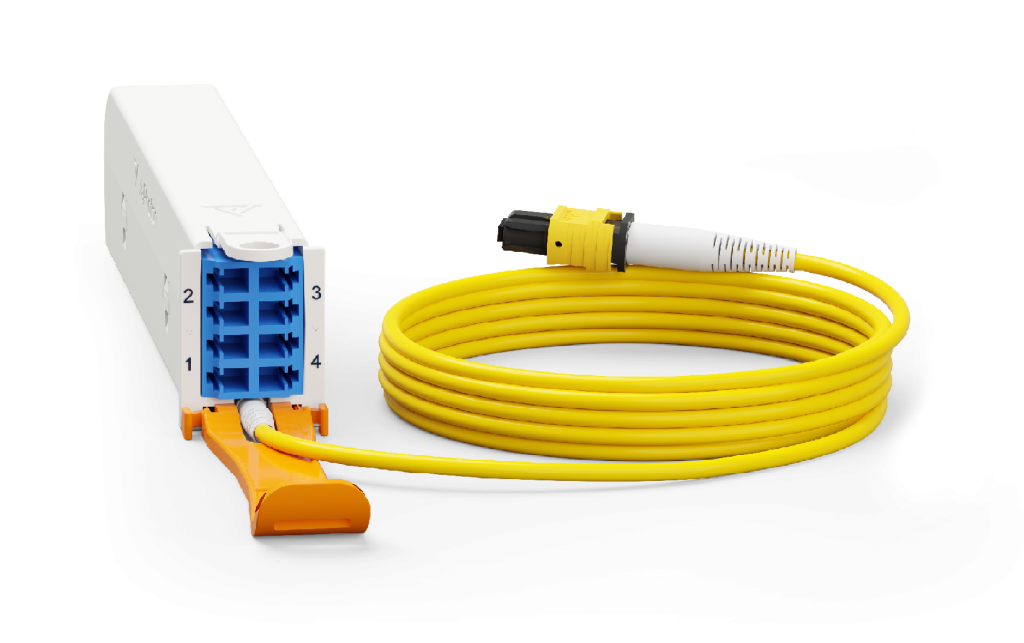

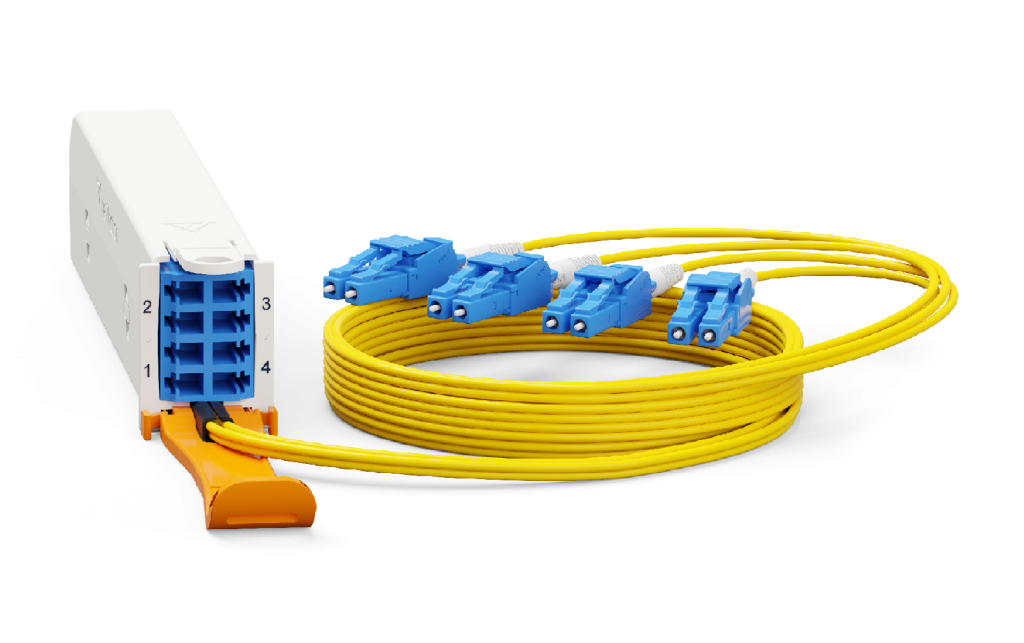

HyperClone™ 4 Port Module with LC or MPO Pigtail
HDM-FL-SM-LC-SFP-M3
HDM-FL-SM-LC-QSFP-M3
HyperClone™ perfectly aligns with switch port counts. Its high-density, rapid module installation and customizable cable management saves time and space.

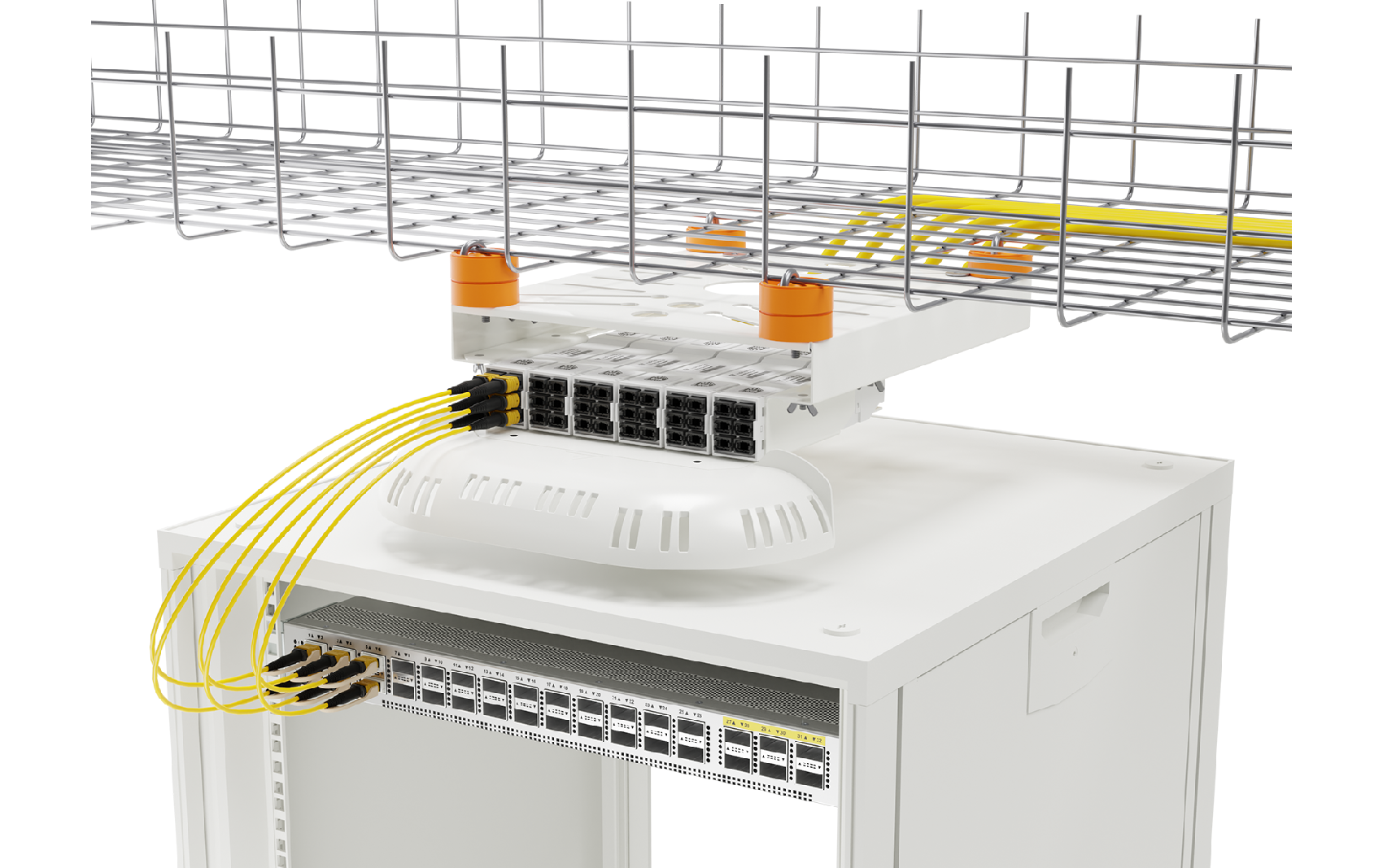

HyperNest™
Basket Tray HDCE-6-BT
- Completely tool-free and rapid installation
- Extremely flexible – works on any basket tray design
- Supports fiber and copper connectivity

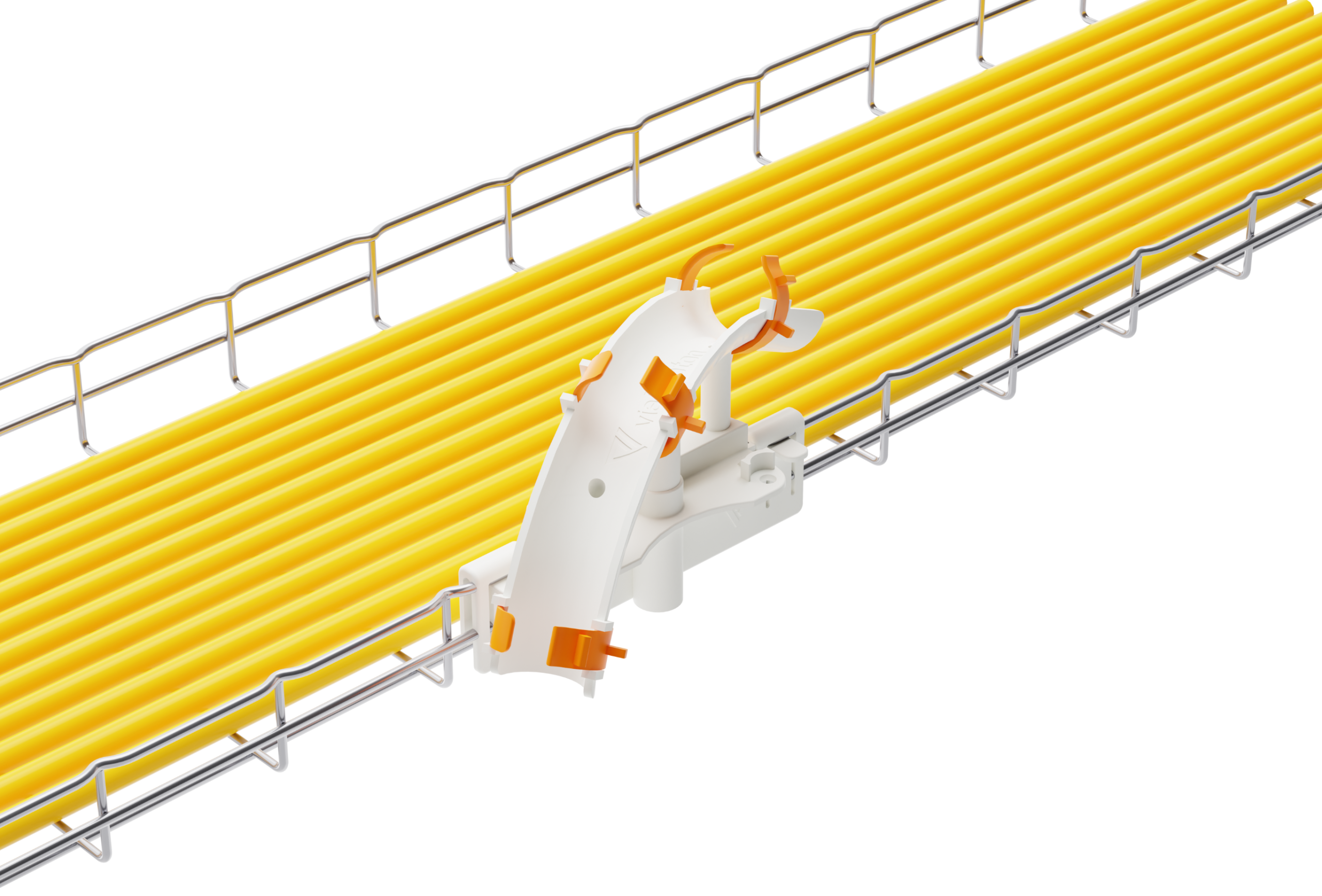

HyperRamp™
Cable Management Solution
- Completely Tool-Free and Rapid Installation
- Reversible Design for Aid in Fiber Routing
- Compact for Routing Fiber in Tight Spaces

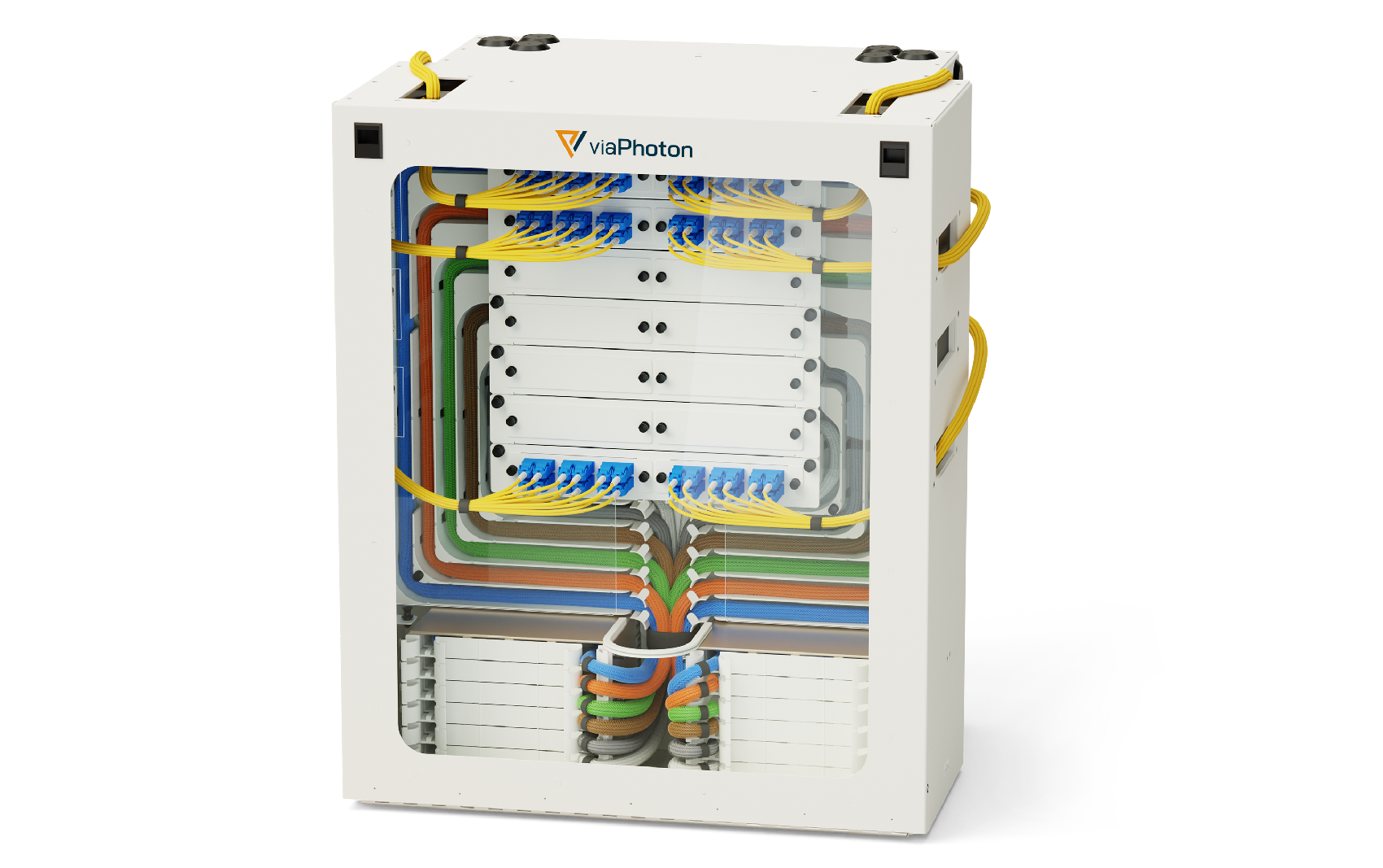

HyperConnect™
Entrance Facility Box
Flexibility for fiber presentation, patching, splicing, and slack storage. Enables data transfer between different network providers
- Max Fiber Count Holds up to 1728 fibers
- Enclosure Dimensions 12U (24.5” H x 20.3” W x 15.0” D)
- Material / Color Aluminum & rugged PC-ABS / white
Other Offerings

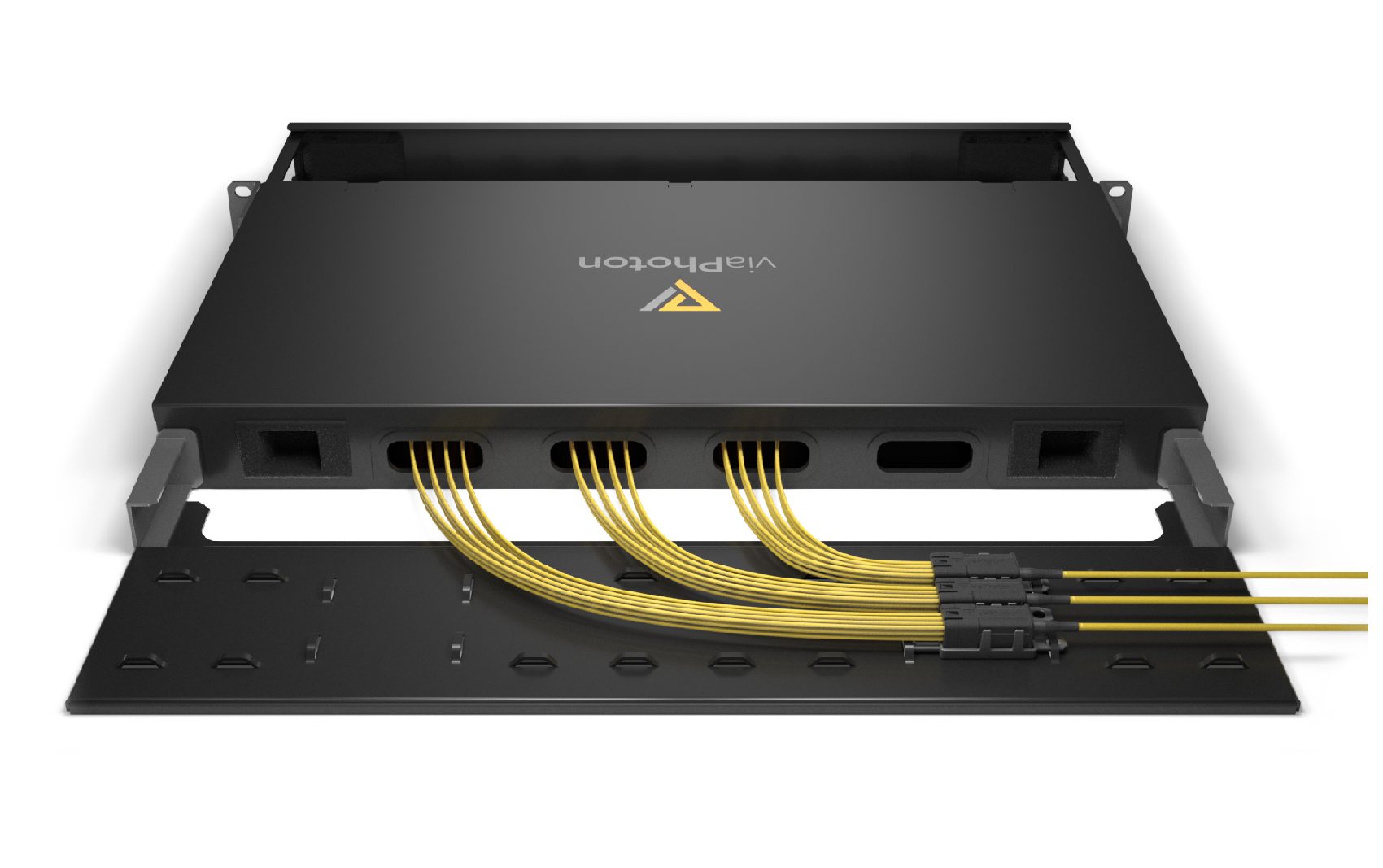

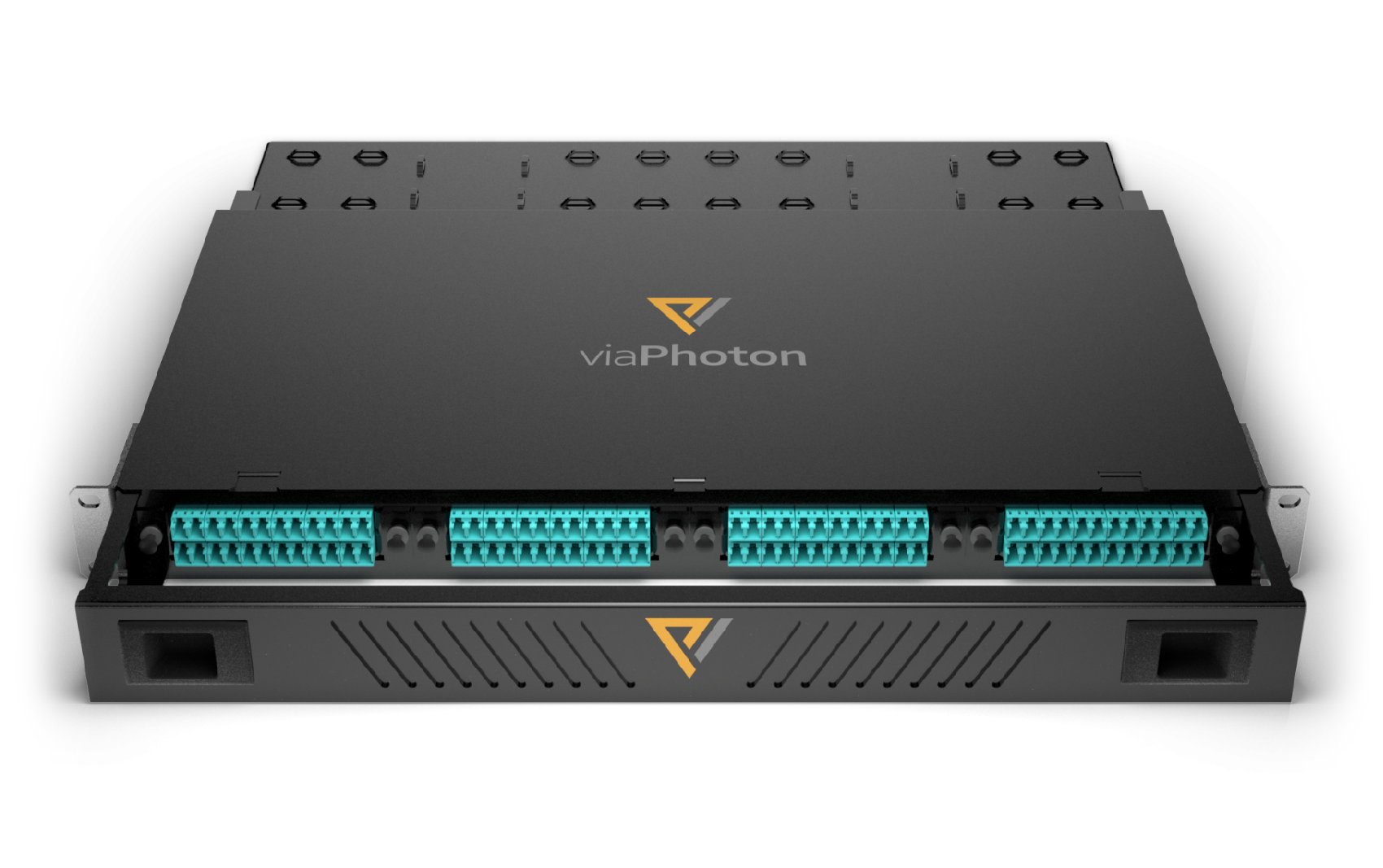

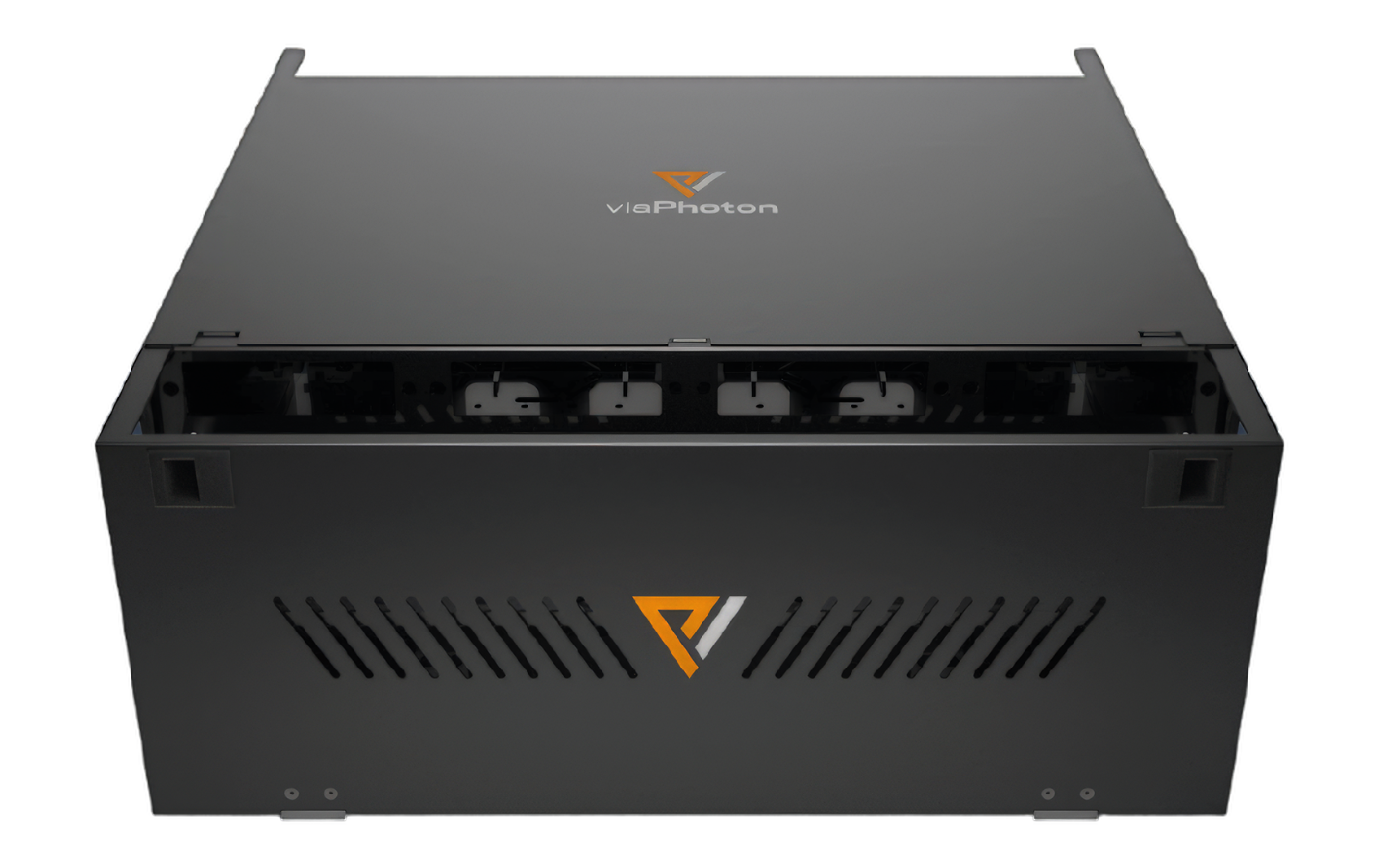

HyperAccess™
viaPhoton’s HyperAccess™ high-density pre-terminated fiber solution is a sleek modular fiber patch panel designed for easy installation, intelligent cable management and scalabilityto support the latest multi-mode and single-mode fiber applications from 10 to 400G and beyond.
HyperAccess provides a robust and versatile solution
to support your office and data center
- Patented fiber attachment
- Supports all connectivity, including MPO and LC
- Ease of installation and use
- Intelligent front-side cable management Supports multiple splicing solutions

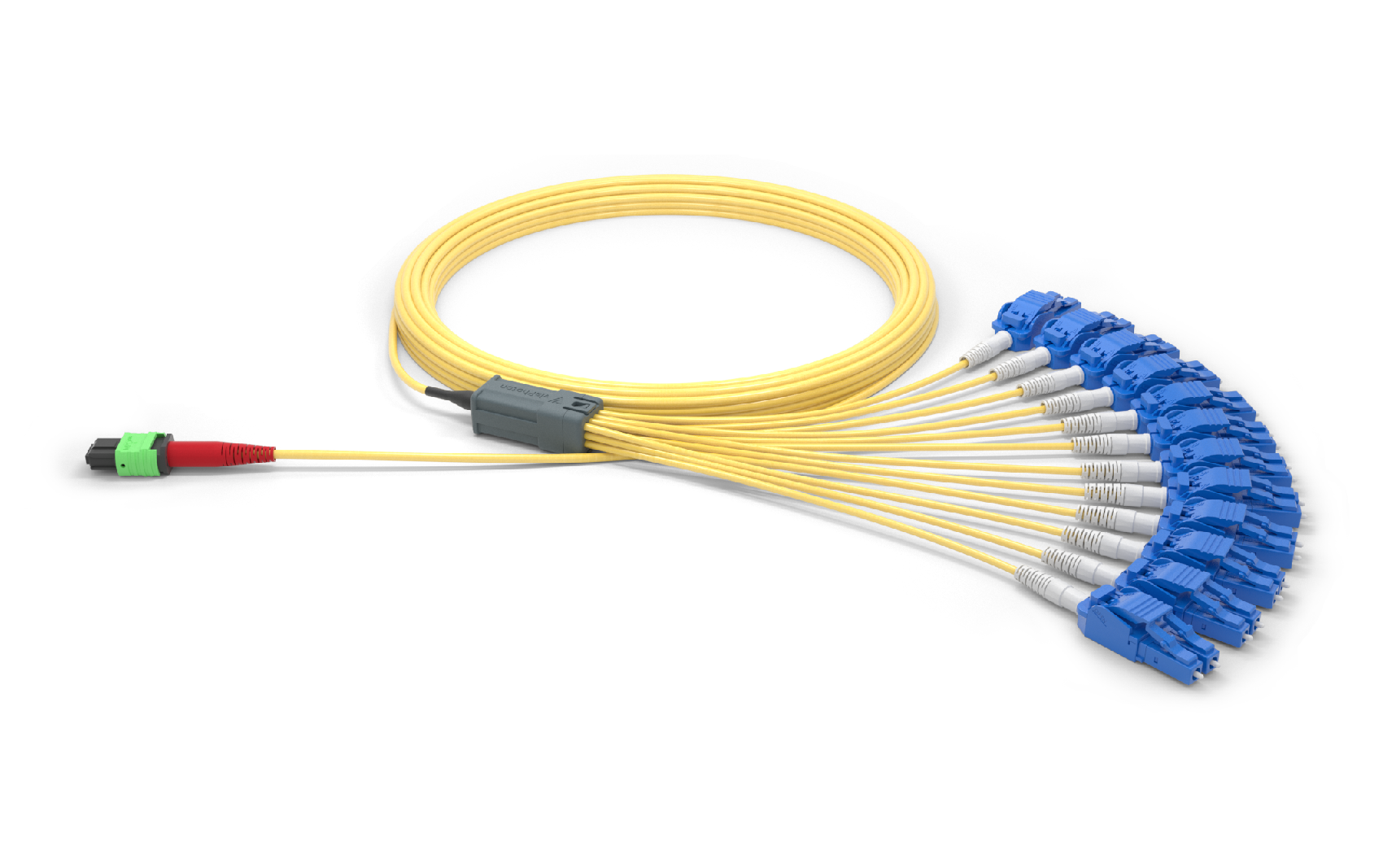

Fiber Arrays
Fiber Options
- 24 · 12 · 8
Connector Options
- LC · MPO · CS · SN · MDC
Low-Loss MPO Connectors
- 0.35 dB
OM4 · OM5 · Single Mode
Plenum Rated
Modular Transition Sleeve Design
100% Factory Tested

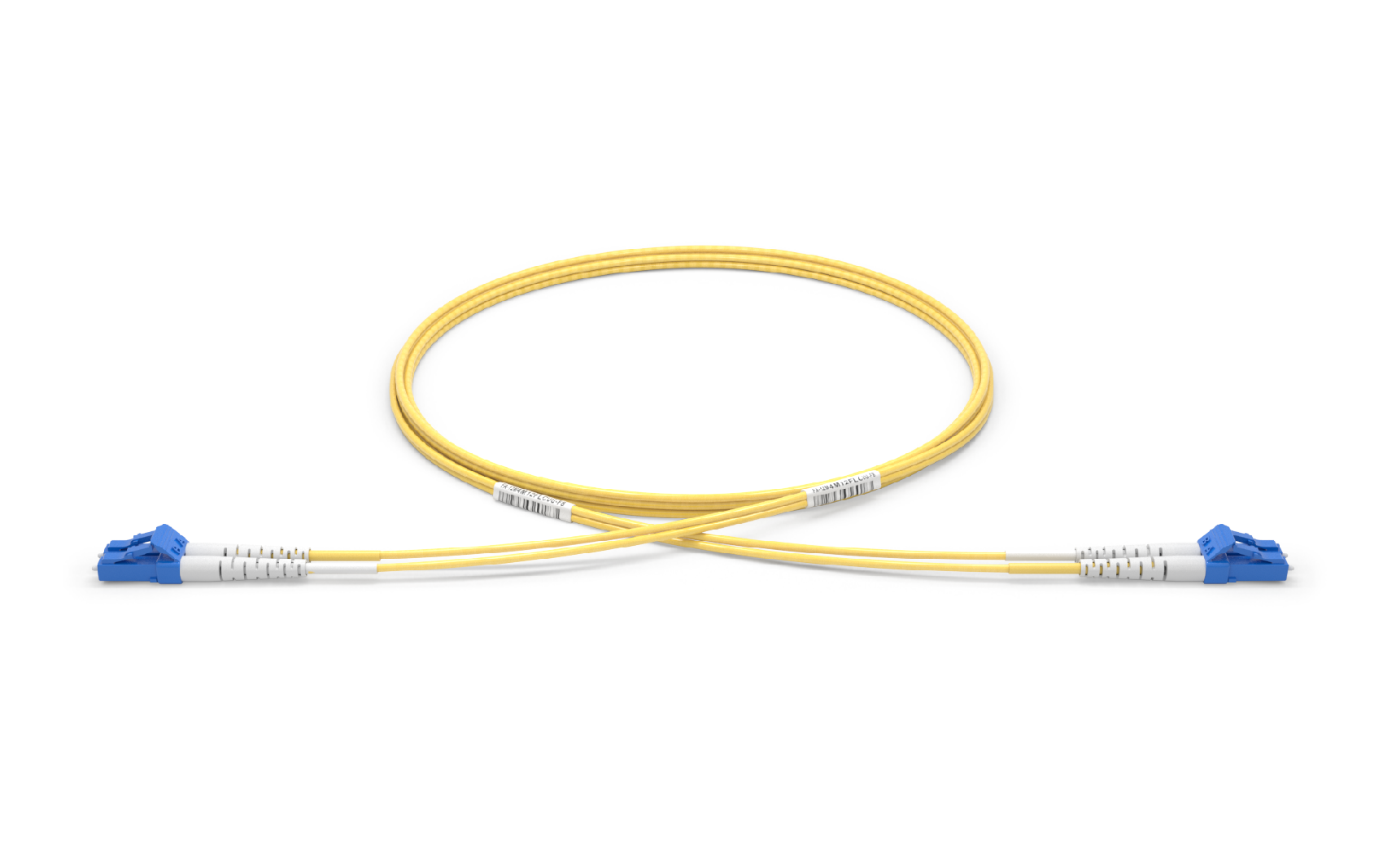

Patch Cords
Connector Options
- LC · MPO · CS · SN · MDC
- Low Loss MPO Connectors: 0.35 dB
- Fiber options: 24 · 12 · 8
OM4 · OM5 · Single Mode
Duplex LC
Plenum Rated
100% Factory Tested
